R2-MI-26

R2-MI-26
€51.90 *

Prices plus VAT plus shipping costs

Delivery time 1-2 Workdays

Auswahl Wiegand Ausgabe Format::

  • R2-MI-34
Active RFID reader antenna for contactless MIFARE ® classic tag Sabotage safe full... more
Product information "R2-MI-26"

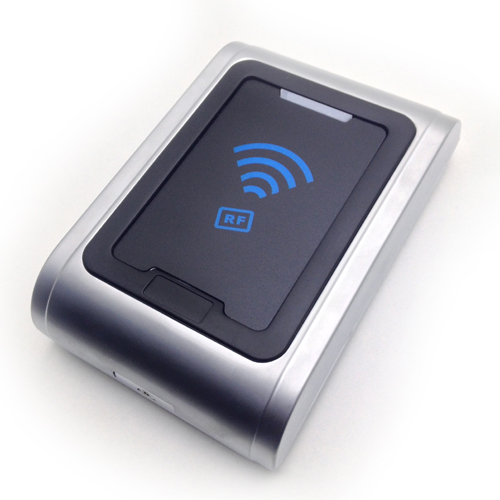

Active RFID reader antenna for contactless MIFARE ® classic tag
Sabotage safe full metal case
Secure the sabotage because the controller is mounted into the security restricted area
Sabotage attempts are ineffective on the antenna
Integrated LEDs and beeper
Waterproof, suitable for outdoor applications
Dimensions: 121x80x26mm
Power supply: 12V - 18V DC
Power consumption: approx. 45mA
Temperature range:-20 ° C to 60 ° C
Protection class: IP68
Cable length: 3 m
Read speed: 0.1 seconds
Interface: Wiegand 26

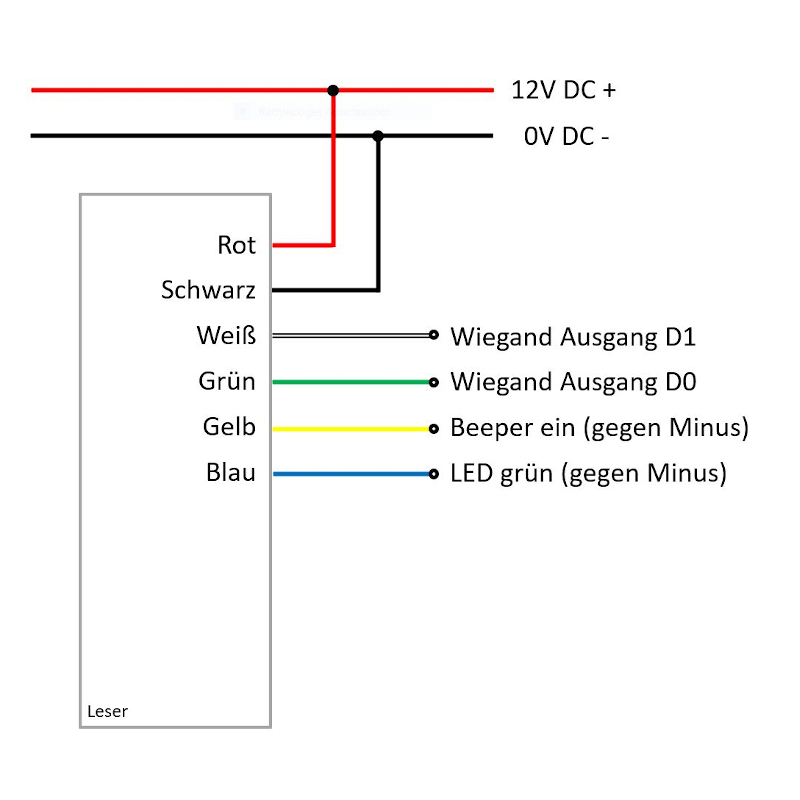

2 wires for data transfer (sending and receiving)
The cable length can be up to 100 m up to the controller.
Reading distance: up to 6 cm
Transponder type: 13.56 MHz, Mifare Classic 1 k or 4 k






compatible to:

  • KEYFLEX 1000 aktiv
  • SEBURY W1
  • SEBURY W2
  • SEBURY K3A
  • SEBURY K4A
  • SC3001NT
  • SC3002NT
  • SC3004NT
RFID Leser Chiptyp: 13,56 MHz, Mifare® Classic
Protokoll, Bauform, Relais, : Wasserdicht, Wiegand 34
