F007-EM-II

€94.90 *

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

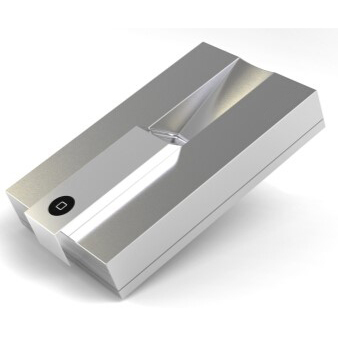

  • F007-EM-II
Fingerprint reader and RFID reader for universal RFID tags Solid steel... more
Product information "F007-EM-II"
Fingerprint reader and RFID reader
for universal RFID tags
Solid steel casing

2160 memory locations (160 fingerprints, 2000 tags)

Fingerprint or RFID tag can open "the door"

  • Deleting of absent users or lost tags is possible
  • Wiegand controller and integrated
  • Use as a standalone device (default)
  • Use as a pure controller (also for antennas (LEGIC, Mifare, Hitag, etc.)
  • Use as possible Wiegand Reader (with Sure sabotage controller in the security area)
  • An output circuit with two EM-F007 possible
  • Lock function with two EM-F007 possible

  • External door opener button can be connected
  • Tamper switch in the case
  • Connection for door contact
  • For doors, gates, garages, shutters, etc.
  • 12V switched output 01-10 seconds adjustable (open-circuit or closed circuit)
  • Switching time of the alarm output (sabotage) 0-3 minutes adjustable
  • Fail-safe EEPROM memory power
  • No PC connection
  • blue backlit touch panel
  • Intergrated LED and beeper
  • Transponder read distance: up to 6cm
  • Finger Sensor Resolution: 450 dpi
  • Reading time: <1 sec
  • Indentification time: <1 sec
  • FAR: < 0,00002561%
  • FRR: < 0,0198%
  • Dimensions: 115x70x35mm

  • Weight: ca.500gr
  • Power supply: 12V DC (8-14V)
  • Power consumption: about 20-90mA
  • Temperature range: -20° C to 60 ° C.
  • Output load: 20A maximum (short circuit)
  • RFID type: Universal 125kHz (EM4102 or compatible)
  • including interface: Wiegand 26 bit

Installation and operating instructions

Installation cable

TCP-IP controller
or
Compact controller

Compatible Tags, Cards, Key Fobs, Label



RFID Leser Chiptyp: 125 kHz, EM4102
Protokoll, Bauform, Relais, : Relais, Wiegand 26
