QR Code & RFID Reader for Access Control Systems

€249.00*

Available, delivery time: 1-3 days

SC3001NT

€159.00*

SC3001NT

€159.00*

SC3002NT

€169.00*

SC3002NT

€169.00*

SC3004NT

€199.00*

SC3004NT

€199.00*

Accessories total price

€249.00 *

Product number: BS700-ISO

Product information "QR Code & RFID Reader for Access Control Systems"

By presenting a smartphone with a displayed or paper code, previously authorized QR/barcode, image recognition is automatically activated. Alternatively, non-contact RFID transponders can also be recognized via the integrated reading field. After successful reading, a beep is emitted and the read code is transmitted to the evaluation unit. Depending on the authorization specified, a switching contact is released to open the door or similar.

    Robust frontal reader for QR codes
    including RFID reader for Unique Transponder 13,56 Mhz, ISO14443, 4byte UID
    Dimensions: HxWxD 120x72x18mm

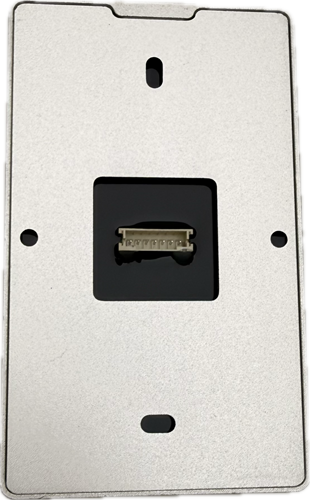

    Can be mounted on a flush-mounted box
    Electronics cast with epoxy
    Image recognition reading distance 5cm to 30cm
    Automatic reading mode preset
    Lighting QR code scanner adjustable
    for 12V DC / 400mA
    IP52
    Operation LED blue, detection LED green
    Output format preset: Wiegand 26/34bit

KEYS · RFID-Technik
Inh. Andreas Kerskes
Fregestraße 52
12161 Berlin
Germany
E-Mail: email@i-keys.de
Internet: www.i-keys.de

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Share your insights with others.

SC3001NT

Single Door ControllerIndependent media,Compatible with wiegand reader: RFID (125khz, 13.56 MHz, 868 MHz), code keypads, fingerprint systems, magnetic card reader, etc.1 relay output for door opener, barrier system, etc.Any number of controllers of the IK-Point SC300xNT series and nearly unlimited numbers of persons can be centrally managed through the access control software.Inputs for external buttons, door monitoring, evaluation for unauthorized opening, etc.The cable length to the external readers can be up to 100m.Transponder can be taught in four ways into the system:- Teaching at the door reader- Teach using a USB reader RD105-US 8D WEG26- Manual input on the PC keyboard (if the Wiegand number is known)- Block storage of assorted transponders (eg 1000 pcs in a minute)Memory for up to 20,000 peopleEvent memory up to 100,000 eventsBoard dimensions: 160x106mmincluding LAN interface RJ45including 2 x Wiegand 26 Interfaceincluding extensive English-language Windows software (free)Attention!The new SC3000 controllers are not compatible with the former SC9000 controllers Wiring German Manual English Software German manual for the German software Accessories Installation cable by meter Periphery Output board Casing without power supplyor Case with power supply WIFI adapter Compatible RFID / PIN Code readerDoor Opener Door Contact

€159.00

Details

SC3002NT

Two Door ControllerIndependent media,Compatible with wiegand reader: RFID (125khz, 13.56 MHz, 868 MHz), code keypads, fingerprint systems, magnetic card reader, etc.1 relay output for door opener, barrier system, etc.Any number of controllers of the IK-Point SC300xNT series and nearly unlimited numbers of persons can be centrally managed through the access control software.Inputs for external buttons, door monitoring, evaluation for unauthorized opening, etc.The cable length to the external readers can be up to 100m.Use as a powerful door controllers with Windows software or as a simple system with basic functions managede via web browserTransponder can be taught in four ways into the system:- Teaching at the door reader- Teach using a USB reader RD105-US 8D WEG26- Manual input on the PC keyboard (if the Wiegand number is known)- Block storage of assorted transponders (eg 1000 pcs in a minute)Memory for up to 20,000 peopleEvent memory up to 100,000 eventsBoard dimensions: 160x106mmincluding LAN interface RJ45including 2 x Wiegand 26 Interfaceincluding extensive English-language Windows software (free)Attention!The new SC3000 controllers are not compatible with the old SC9000 controllersAccessories Installation cable by meter Periphery Output board Casing without power supplyor Case with power supply WIFI adapter Compatible RFID / PIN Code readerDoor Opener Door Contact

€169.00

Details

SC3004NT

Four Door ControllerIndependent media,Compatible with wiegand reader: RFID (125khz, 13.56 MHz, 868 MHz), code keypads, fingerprint systems, magnetic card reader, etc.1 relay output for door opener, barrier system, etc.Any number of controllers of the IK-Point SC300xNT series and nearly unlimited numbers of persons can be centrally managed through the access control software.Inputs for external buttons, door monitoring, evaluation for unauthorized opening, etc.The cable length to the external readers can be up to 100m.Use as a powerful door controllers with Windows software or as a simple system with basic functions managede via web browserTransponder can be taught in four ways into the system:- Teaching at the door reader- Teach using a USB reader RD105-US 8D WEG26- Manual input on the PC keyboard (if the Wiegand number is known)- Block storage of assorted transponders (eg 1000 pcs in a minute)Memory for up to 20,000 peopleEvent memory up to 100,000 eventsBoard dimensions: 160x106mmincluding LAN interface RJ45including 2 x Wiegand 26 Interfaceincluding extensive English-language Windows software (free)or as a German-language Windows software (free of charge)Attention!The new SC3000 controllers are not compatible with the old SC9000 controllersAccessories Installation cable by meter Periphery Output board Casing without power supplyor Case with power supply WIFI adapter Compatible RFID / PIN Code readerDoor Opener Door Contact

€199.00

Details
