Prices plus VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
- Order number: SC3004NT
- Open text field 2: Zutrittscontroller für 4 Türen mit Netzwerkanschluss und Verwaltung mit PC Software
Four Door Controller
Compatible with wiegand reader: RFID (125khz, 13.56 MHz, 868 MHz), code keypads, fingerprint systems, magnetic card reader, etc.
1 relay output for door opener, barrier system, etc.
Any number of controllers of the IK-Point SC300xNT series and nearly unlimited numbers of persons can be centrally managed through the access control software.
Inputs for external buttons, door monitoring, evaluation for unauthorized opening, etc.
The cable length to the external readers can be up to 100m.
Use as a powerful door controllers with Windows software or as a simple system with basic functions managede via web browser
Transponder can be taught in four ways into the system:
- Teaching at the door reader
- Teach using a USB reader RD105-US 8D WEG26
- Manual input on the PC keyboard (if the Wiegand number is known)
- Block storage of assorted transponders (eg 1000 pcs in a minute)
Memory for up to 20,000 people
Event memory up to 100,000 events
Board dimensions: 160x106mm
including LAN interface RJ45
including 2 x Wiegand 26 Interface
including extensive English-language Windows software (free)
or as a German-language Windows software (free of charge)
The new SC3000 controllers are not compatible with the old SC9000 controllers
Installation cable by meter
Periphery Output board
Casing without power supply

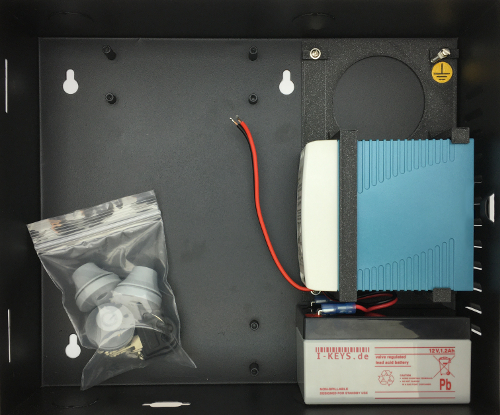

Case with power supply
Compatible RFID / PIN Code reader
