Product number: PTLPR-WGPN

Product information "lizence plate recocniton camera"

License plate camera for SC3000NT controllers

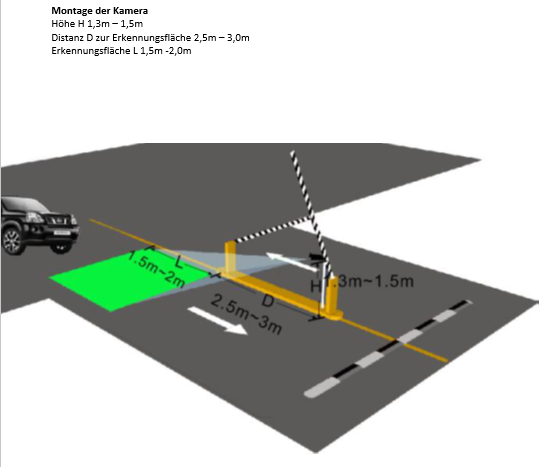

When a vehicle approaches, the license plate is detected and converted into a Wiegand signal, which is then transmitted to the access controller unit. Depending on the predefined authorization time, a switching contact is enabled to open a barrier, roller door, or similar device.

  • Robust metal housing
  • Image recognition reading range up to 10m
  • Automatic reading mode preset
  • IR illumination automatically activates in darkness
  • For 12V DC / 200mA - 900mA
  • IP67
  • Dimensions: D x H x W 280 x 90 x 90mm
  • Output format: Wiegand 26-bit


Suitable for SC3001NT, SC3002NT, SC3004NT controllers or Sboard or other Wiegand access controller

KEYS · RFID-Technik
Inh. Andreas Kerskes
Fregestraße 52
12161 Berlin
Germany
E-Mail: email@i-keys.de
Internet: www.i-keys.de


0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Skip product gallery
RC-1001
RC-1001
Protective Case Rain cover / Screen Closed on all sides, including rubber seal for rough surfaceswith 2 cable bushings, Holes must be drilled individually Material: Plastic Color: Black Dimensions HxWxD: 150x104x90mm

€12.80
Details
SC3001NT
SC3001NT
Single Door ControllerIndependent media,Compatible with wiegand reader: RFID (125khz, 13.56 MHz, 868 MHz), code keypads, fingerprint systems, magnetic card reader, etc.1 relay output for door opener, barrier system, etc.Any number of controllers of the IK-Point SC300xNT series and nearly unlimited numbers of persons can be centrally managed through the access control software.Inputs for external buttons, door monitoring, evaluation for unauthorized opening, etc.The cable length to  the external readers can be up to 100m.Transponder can be taught in four ways into the system:- Teaching at the door reader- Teach using a USB reader RD105-US 8D WEG26- Manual input on the PC keyboard (if the Wiegand number is known)- Block storage of assorted transponders (eg 1000 pcs in a minute)Memory for up to 20,000 peopleEvent memory up to 100,000 eventsBoard dimensions: 160x106mmincluding LAN interface RJ45including 2 x Wiegand 26 Interfaceincluding extensive English-language Windows software (free)Attention!The new SC3000 controllers are not compatible with the former SC9000 controllers Wiring German Manual English Software German manual for the German software Accessories Installation cable by meter Periphery Output board Casing without power supplyor Case with power supply WIFI adapter Compatible RFID / PIN Code readerDoor Opener Door Contact

€159.00
Details
SC3002NT
SC3002NT
Two Door ControllerIndependent media,Compatible with wiegand reader: RFID (125khz, 13.56 MHz, 868 MHz), code keypads, fingerprint systems, magnetic card reader, etc.1 relay output for door opener, barrier system, etc.Any number of controllers of the IK-Point SC300xNT series and nearly unlimited numbers of persons can be centrally managed through the access control software.Inputs for external buttons, door monitoring, evaluation for unauthorized opening, etc.The cable length to  the external readers can be up to 100m.Use as a powerful door controllers with Windows software or as a simple system with basic functions managede via web browserTransponder can be taught in four ways into the system:- Teaching at the door reader- Teach using a USB reader RD105-US 8D WEG26- Manual input on the PC keyboard (if the Wiegand number is known)- Block storage of assorted transponders (eg 1000 pcs in a minute)- Memory for up to 20,000 people- Event memory up to 100,000 events- Board dimensions: 160x106mmincluding LAN interface RJ45including 2 x Wiegand 26 Interfaceincluding extensive English-language Windows software (free)Attention!The new SC3000 controllers are not compatible with the old SC9000 controllersAccessories Installation cable by meter Periphery Output board Casing without power supplyor Case with power supply WIFI adapter Compatible RFID / PIN Code readerDoor Opener Door Contact

€169.00
Details
SC3004NT
SC3004NT
Four Door ControllerIndependent media,Compatible with wiegand reader: RFID (125khz, 13.56 MHz, 868 MHz), code keypads, fingerprint systems, magnetic card reader, etc.1 relay output for door opener, barrier system, etc.Any number of controllers of the IK-Point SC300xNT series and nearly unlimited numbers of persons can be centrally managed through the access control software.Inputs for external buttons, door monitoring, evaluation for unauthorized opening, etc.The cable length to  the external readers can be up to 100m.Use as a powerful door controllers with Windows software or as a simple system with basic functions managede via web browserTransponder can be taught in four ways into the system:- Teaching at the door reader- Teach using a USB reader RD105-US 8D WEG26- Manual input on the PC keyboard (if the Wiegand number is known)- Block storage of assorted transponders (eg 1000 pcs in a minute)- Memory for up to 20,000 people- Event memory up to 100,000 eventsBoard dimensions: 160x106mmincluding LAN interface RJ45including 2 x Wiegand 26 Interfaceincluding extensive English-language Windows software (free)or as a German-language Windows software (free of charge)Attention!The new SC3000 controllers are not compatible with the old SC9000 controllersAccessories Installation cable by meter Periphery Output board Casing without power supplyor Case with power supply WIFI adapter Compatible RFID / PIN Code readerDoor Opener Door Contact

€199.00
Details
Housing and switching power supply
Housing and switching power supply
Housing with improved, modern and energy-efficient 12V switching power supply unitfor door controllers SC3001NT, SC3002NT, SC3004NT, SC901NT, SC902NT, SC904NTsheet steel housing 28x23,5x7cm, with lockable doorwith integrated switching power supply 100-250V - 12V DC voltageMax. simultaneous withdrawal 5AStabilized, overvoltage-proof, electronic overload and short-circuit protection

€58.90
Details
Access Control Software Z3D
Access Control Software Z3D
German-language software for the IK-POINT door controller SC3001NT, SC3002NT, SC3004NTfor all current versions of Windows Win10, Win11Extensive facilities for unlimited attachment sizes.Delivery on CD incl. USB key against unauthorized use.Operating instructions as PDF

€79.00
