Our combined keyboard & transponder access control for door opening with PIN code entry and / or transponder are used as an independent standalone device such as a code lock or keyed-alike locking system / locking system with RFID transponder.
Depending on the version, the devices have a potential-free relay contact or direct switching output to which you connect your door opener. After presenting a transponder or PIN code that you have authorized, the relay contact to the door opener is closed or the switching output is activated. You can store transponders with RFID chips or alternatively PIN codes in the code lock.
The transponder and PIN codes are authorized directly on the device. Depending on the version of the respective device, additional separate reading devices can be connected to implement the lock function, anti passback and increased security.
The operating instructions in German can be downloaded immediately for each device in the item description. To ensure greater security, we recommend installing a reading device and a separate evaluation unit to prevent manipulation of the cables for switching the door opener. Suitable products from the area: Access control with separate reader and evaluation unit can be found under Controller/evaluation unit and wall reader.
For access control in office buildings, apartments and representative public areas, we recommend our locking systems that can be managed with PC software and can be configured into a centrally managed and freely expandable access control system with event storage. The IK-POINT access controllers SC3001NT, SC3002NT, SC3004NT with Wiegand interface installed can be used as wall readers for access in the access area.
Glass touch keypad and dual frequency RFID access control for EM4102 / 4100/4200 and ISO14443 compatible transponders
Full metal housing with concentrated double reading field through the LED bar and solid PIN code keypad
The use of plastic on the housing could almost be dispensed with.
Potted waterproof, suitable for outdoor areas
Multifunction with PIN code and RFID multi-protocol reader
Standalone function with relay output
Reading function connected to Wiegand connection for evaluation units such as Sboard access controllers and SC3000NT. The relay switching then takes place inside, so attempts at sabotage on the wall reader are ineffective.
Technical details:
PIN code and RFID reader full metal housing
Glass keypad
Color: cappuccino black
Operating mode: standalone or reader (Wiegand)
Dual frequency 125 khz and 13.56 Mhz
RFID chip types 125KHz: HID prox, EM4200, EM4102 UID
RFID chip types 13.56MHz: ISO 14443
Output format: Wiegand 26 / 34bit
Housing: waterproof encapsulated IP65
LED and beep can be switched off
Power supply: 12V DC, 50mA
Dimensions: 170 x 83 x 26mm
Download instruction manual: sKey2 instruction manual.pdf
Glass touch keypad and dual frequency RFID access control for EM4102 / 4100/4200 and ISO14443 compatible transponders
Full metal housing with concentrated double reading field through the LED bar and solid PIN code keypad
The use of plastic on the housing could almost be dispensed with.
Potted waterproof, suitable for outdoor areas
Multifunction with PIN code and RFID multi-protocol reader
Standalone function with relay output
Reading function connected to Wiegand connection for evaluation units such as Sboard access controllers and SC3000NT. The relay switching then takes place inside, so attempts at sabotage on the wall reader are ineffective.
Technical details:
PIN code and RFID reader full metal housing
Glass keypad
Color: cappuccino black
Operating mode: standalone or reader (Wiegand)
Dual frequency 125 khz and 13.56 Mhz
RFID chip types 125KHz: HID prox, EM4200, EM4102 UID
RFID chip types 13.56MHz: ISO 14443
Output format: Wiegand 26 / 34bit
Housing: waterproof encapsulated IP65
LED and beep can be switched off
Power supply: 12V DC, 50mA
Dimensions: 160 x 45 x 26mm
Download instruction manual: sKey2 instruction manual.pdf
RFID and code / waterproof / 2,000 people Access control system with integrated RFID reader antenna for contactless transponder Solid steel housing, vandal and tamper-proof Waterproof IP68 sealed 2,000 memory places (people)Transponder only or Code only or Transponder + Code Individual transponders also erased if lost Controller and integrated active antenna · - Use as a standalone device (default)· - Use as a pure controller (also for antennas (LEGIC, ISO14443, Hitag, etc.)· - Use antenna as possible Wiegand26 External door opener button can be connectedTamper switch in the housingConnection for door contactFor doors, gates, garages, shutters, etc.Potential free relay output 00-99 seconds adjustable (change)Switching time of the alarm output (sabotage) 0-3 minutes adjustableFail-safe EEPROM memory powerNo PC connectionblue backlit keypadIntegrated LEDs and beeper Reading distance: up to 6cmDimensions: 128x82x28mm Weight: ca.700gPower supply: 12V-24V DC or AC voltageCurrent consumption: approx 40mA Transponder type: Universal 125kHz (EM4102 or compatible) including interface: Wiegand 26 bit in / outincluding 2 programming cards for fast learning of transpondersInstallation and operating instructions Manual Optional AccessoriesTags, Cards, FobsReader (W1-C is indoor mounted)Controller (W1-C is outdoor mounted as Reader)Power SuppliesLocker & Strikes
Transponder Codeschloss mit RFIDRFID und Code / 1000 Personen Lesegerät mit integrierter RFID Leseantenne für berührungslose Transpondermassives Stahlgehäuse, mattiert, Vandalen- und Sabotagegeschützt1000 Speicherplätze (Personen)Nur Transponder, nur Code oder Transponder + CodeCode jetzt auch ohne Transponder anzulegenEinzelne Transponder auch bei Verlust löschbarExterner Türöffnertaster anschließbarSabotagekontakt im GehäuseAnschluß für TürkontaktFür Türen, Schranken, Tiefgaragen, Rollläden, etcÖffnungsrelais von 1 – 99 Sekunden einstellbaroder Dauerschaltung für Licht- oder SchaltfunktionenSchaltzeit des Alarmausgangs (Sabotage) von 1 - 3 Minuten einstellbarStromausfallsicherer EEPROM SpeicherKein PC-Anschlußblau hinterleuchtetes TastenfeldLEDs und Beeper intergriertLeseabstand: bis 6cmTemperaturbereich: -40°C bis 60°CMaße:128x82x28mmGewicht: ca.500gStromversorgung: 12V Gleichspannung (8-14V)Stromaufnahme: ca. 20mABelastung Relais: max 3000mATranspondertyp: Universal 125kHz (EM4102 oder kompatibel)
Deutsche Montage- und Bedienungsanleitung
Anleitung
Optionales Zubehör
Installationsleitung Meterware
Wetterschutzdach
Transponder
Netzteile
Türöffner
Magnetkontakt
High-quality key safe with various access options
The weatherproof metal D3 key safe can be opened with a fingerprint, PIN code, smartphone app or RFID transponder. It can be fixed to the wall next to the door or hung up on the doorknob or railing or similar using steel brackets.
A so-called 5-minute code can be assigned remotely, for example to give holiday guests access to the keys to the holiday apartment or holiday home. You generate a unique 9-digit PIN code via the smartphone app, which you can then announce to your holiday guests by phone or send it by SMS, Whatsapp or email.
This code is deleted again after 5 minutes and is then ineffective.
Technical characteristics:
- Zinc alloy weatherproof housing- Supports RFID transponder 13.56MHz ISO14443A- Capacitive fingerprint sensor with low power consumption- Configuration via smartphone app Tuya- Door opening with fingerprint or transponder or PIN code or via Bluetooth
- Power failure safe EEPROM memory
- Backlit sensor field with button tones (can be switched off)- English voice announcement integrated (can be switched off)
Specification:Material: zinc alloyBattery operation: 4x1.5V AAA (not included)Emergency power supply via USBStorage space for transponders/PIN codes: 150 usersStorage space fingerprints: 100 usersWorking temperature: -25°C to 55°CDimensions: 122x72x52mm
Download: German assembly and operating instructions as PDF
Sebury sKey wideStand alone access control systemISO14443
Can be used as a complete unit with integrated memory and relay outputoras tamper-resistant variant as a mere reader in conjunction with a door controller- Elegant and robust aluminum housing- Waterproof IP65- Illuminated Metal Keypad and RFID reader for contactless transponder- 2000 memory locations for key codes and transponders- Adjustable : code or transponder / code and transponder / transponder only- Additional data output for professional applications : Wiegand 26-37 bits- Tamper switch in the housing- LEDs and beeper integrated- Audible alarm if tampering- Alarm output- Integrated change-over relay- Circuit as pulse 1-99 seconds- Or as a continuous circuit ON-OFF - ON-OFF for switching functions- Bell button directly led out ( internal resistance of about 80 ohms) for electronic Gong ( max. 10mA ) or Doorbell decoder- Multi-user function , 2-10 persons must identify themselves before the door is opened.- Circuit as a single unit or as an anti -passback with two readers for one door- Transponder reading distance : up to 3 -10cm- Dimensions sKey -w : 125x83x22mm- Power supply: 12V -24V DC- Current: 35mA- Temperature range : -40 ° C to 60 ° C- Status display : multi-function display (can be deactivated )- Keyboard Backlight : white, On or Off , or Auto ( the 1st press ON , 30 sec OFF)- Keypad tones (can be disabled )Or use as Wiegand reader in conjunction with a door controller- Transponder data is transferred- Keyboard signals can be set as 4bit , 8bit or as a virtual card number- 26bit to 37bit adjustable WiegandmodusReadable transponder types :13.56MhzISO14443 1k, 4k, 4byte oder 7byteScope of delivery:- Outdoor unit / Access host sKey standalone wide- Manager Cards ( learning and delete card )- Small and fixing material- Manual (english) Print- Manual ( German ) as PDFManual DownloadOptional AccessoriesInstallation cable by meter
Power SupplyISO14443 TAGsDoor OpenerController Network
Controller Compact
Doorbell decoder
Protective Case Rain cover / Screen Closed on all sides, including rubber seal for rough surfaceswith 2 cable bushings, Holes must be drilled individually Material: Plastic Color: Black Dimensions HxWxD: 150x104x90mm
Sebury touch wideStand alone access systemCan be used as a complete device with integrated memory and relay outputoras a tamper-proof variant as a pure reader in connection with a door controller- Elegant and robust aluminum housing- Waterproof IP65- Illuminated touch keyboard and RFID reader for contactless transponders- 2000 memory locations for keyboard codes and transponders- Adjustable: code or transponder / code and transponder / only transponder- additional data output for professional applications: Wiegand 26-37 bit- Sabotage contact in the housing- Integrated LEDs and beeper- Acoustic alarm in the event of sabotage- alarm output- integrated changeover relay- Switching as a pulse 1-99 seconds- or as permanent ON-OFF-ON-OFF for switching functions- Bell button led out directly (internal resistance approx. 80 Ohm) only for electronic gong (max. 100mA) or via doorbell decoder- Multi-user function, 2-10 people must identify themselves before the door is opened.- Switching as a single system or as an anti-pass-back with two readers for one door- Reading distance transponder: up to 3-10cm- Dimensions sTouch-w: 125x83x22mm- Power supply: 12V-24V DC voltage- Current: 35mA- Temperature range: -40 ° C to 60 ° C- Operating display: multifunction display (can be switched off)- Keyboard lighting: white (can be switched off or automatic when approaching)- Key tones (can be switched off)Readable transponder types:125 kHz (HID-Prox, EM4100, EM4102, EM4200 or compatible) Unique / Universal Scope of delivery:- External unit / Access Host sTouch Standalone wide- Manager cards (learning and deletion cards)- Small and fastening material- Instructions (English) print- Instructions (German) as PDFEnglish manualOperating instructions German Optional accessoriesInstallation cable by the meterTransponder EM or HIDPower supplyDoor openerControllerElectronic doorbell
RFID and Code / waterproof / 2 relay outputs Reader with an integrated RFID reader antenna for contactless RFID tags, cards, labels, fobs Solid steel casing, matt, vandal and tamper-proof Waterproof IP68 sealedTotal 1200 memory locations1100 memory locations for relay 1and100 memory locations for relay 2Transponders only or Code only or Tag + Code4-6 digit code lengthIndividual transponders deletable if lostExternal door opener button can be connectedTamper switch in the housingConnection for door contactFor doors, gates, garages, shutters, etc.Two relay outputsOpening relay from 01 - 99 seconds adjustableor as a bistable relay (maintained)Switching time of the alarm output (sabotage) 1-3 minutes adjustableFail-safe EEPROM memory powerNo PC connectionblue backlit keypadIntergrated LED and beeperKey tones switched off Reading distance: up to 6cmDimensions: 135x58x26mmWeight: ca.600gPower supply: 12-24V DC or AC voltageCurrent consumption: approx 60mALoad relay: max. 2ATransponder type: Universal 125kHz (EM4102 or compatible) English and German Installation and operating instructions
Optional Accessories
Tags, Cards, Fobs
Reader (W1-C is indoor mounted)
Controller (W1-C is outdoor mounted as Reader)
Power Supplies
Locker & Strikes
at 240V
bei 240V►
Zur Anzeige alternativer Übersetzungen klicken
Ziehen Sie zum Ändern der Reihenfolge mit gedrückter Umschalttaste.

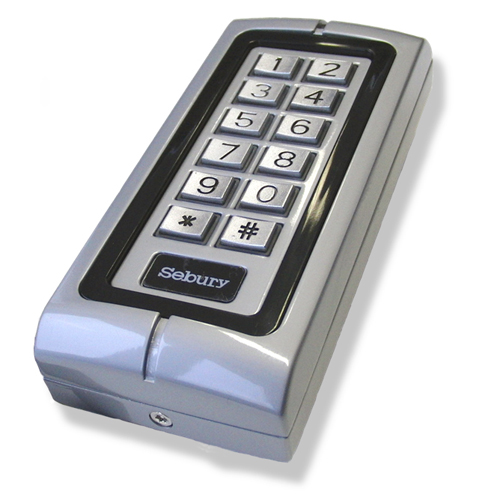

Code lock with integrated RFID antenna in the solid metal housing. The device is sealed in waterproof and thus easily mounted outdoors and can be used.
RFID and code / 2000 people
Reader with integrated RFID reader antenna for contactless EM4102 tags
solid steel case, matte finish, vandals - and sabotage safe
Waterproof IP68
Bell push button (internal approx. 80 ohms) only for electronic bells (max. 100mA)
2000 people
Only tag, only code or transponder + code mode
Lost tags can be deleted
External door strike can be connected
Tamper contact in the housing
Connection for door contact
For doors, barriers, parking garages, shutters, etc
Opening relay from 1-99 seconds adjustable
Switching time of 1-3 minutes adjustable alarm output (sabotage)
Power failure safe EEPROM memory
No PC connection required, management directly on the device
blue backlit keypad
Integrate LEDs and beeper
incl. 26bit Wiegand output
RFID reading distance: up to 6 cm
Temperature range:-40 ° C to 60 ° C
Dimensions: 118x56x20mm
Weight: ca. 450 g
Power supply: 12V DC
Power consumption: approx. 40mA
Load relay: max 3000mA at 12V DC
RFID type: Universal 125 kHz (EM4102 or compatible)
Installation - and operating instructions
Optional accessories:Installation cableTCP-IP controllerorCompact controllerCompatible Tags, Cards, Key Fobs, Label
Ruggedized PIN code and dual frequency RFID access control for EM4102 / 4100/4200 and ISO14443 compatible transponders
Full metal housing with concentrated double reading field through the LED bar and solid PIN code keypad
The use of plastic on the housing could almost be dispensed with.
Potted waterproof, suitable for outdoor areas
Multifunction with PIN code and RFID multi-protocol reader
Standalone function with relay output
Reading function connected to Wiegand connection for evaluation units such as Sboard access controllers and SC3000NT. The relay switching then takes place inside, so attempts at sabotage on the wall reader are ineffective.
Technical details:
PIN code and RFID reader full metal
Color: cappuccino black
Operating mode: standalone or reader (Wiegand)
Dual frequency 125 khz and 13.56 Mhz
RFID chip types 125KHz: HID prox, EM4200, EM4102 UID
RFID chip types 13.56MHz: ISO 14443
Output format: Wiegand 26 / 34bit
Housing: waterproof encapsulated IP65
LED and beep can be switched off
Power supply: 12V DC, 50mA
Dimensions: 170 x 83 x 26mm
Download instruction manual: sKey2 instruction manual.pdf
RFID und Code / wasserdicht / 2 RelaisausgängeLesegerät mit integrierter RFID Leseantenne für berührungslose Transpondermassives Stahlgehäuse, mattiert, Vandalen- und SabotagegeschütztWasserdicht vergossen IP68Gesamt 2100 Speicherplätze
2000 Speicherplätze für Relais 1
und
100 Speicherplätze für Relais 2
Nur Transponder, nur Code oder Transponder + Code
Codelänge 4-8 stellig
Einzelne Transponder auch bei Verlust löschbar
Externer Türöffnertaster anschließbar
Sabotagekontakt im Gehäuse
Anschluß für Türkontakt
Für Türen, Schranken, Tiefgaragen, Rollläden, etc
Zwei Relaisausgänge (Impuls oder Statisch)
Öffnungsrelais von 1 – 99 Sekunden einstellbar
oder als bistabiles Relais (Dauerschaltung)Relais 2 ist auch als Klingeltaster nutzbar (Taste #)
Schaltzeit des Alarmausgangs (Sabotage) von 1 - 3 Minuten einstellbar
Stromausfallsicherer EEPROM Speicherinkl. Wiegand Schnittstelle 26-37bitinkl. Programmierkarten für schnelles Einlernen / Löschen(Blockspeicherung) mit sortierten TranspondernErste UID Nummer und Stückzahl eingeben, fertig (z.B. 500 St. in wenigen Sekunden)
Kein PC-Anschluß
blau hinterleuchtetes Tastenfeld
LEDs und Beeper integriert
Tastentöne abschaltbarHintergrundbeleuchtung abschaltbarBlinkende Betriebs LED abschaltbar
Leseabstand: bis 6cm
Maße:128x82x28mm
Gewicht: ca.600g
Stromversorgung: 12-24V Gleichspannungoder 12-18V Wechselspannung
Stromaufnahme: ca. 25mA
Belastung Relais: max. 2A
Transpondertyp: Universal 125kHz (EM4102 oder kompatibel)und / oder HID Prox
Deutsche und englische Montage- und Bedienungsanleitung
Anleitung
Optionales Zubehör
Installationsleitung Meterware
Transponder
Netzteile
Türöffner
Magnetkontakt
Sebury sKey smallStand alone access control systemCan be used as a complete unit with integrated memory and relay outputoras tamper-resistant variant as a mere reader in conjunction with a door controller- Elegant and robust aluminum housing- Waterproof IP65- Illuminated Metal Keypad and RFID reader for contactless transponder- 2000 memory locations for key codes and transponders- Adjustable : code or transponder / code and transponder / transponder only- Additional data output for professional applications : Wiegand 26-37 bits- Tamper switch in the housing- LEDs and beeper integrated- Audible alarm if tampering- Alarm output- Integrated change-over relay- Circuit as pulse 1-99 seconds- Or as a continuous circuit ON-OFF - ON-OFF for switching functions- Bell button directly led out ( internal resistance of about 80 ohms) for electronic Gong ( max. 10mA ) or Doorbell decoder- Multi-user function , 2-10 persons must identify themselves before the door is opened.- Circuit as a single unit or as an anti -passback with two readers for one door- Transponder reading distance : up to 3 -10cm- Dimensions sKey -s: 159x43x22mm- Power supply: 12V -24V DC- Current: 35mA- Temperature range : -40 ° C to 60 ° C- Status display : multi-function display (can be deactivated )- Keyboard Backlight : white, On or Off , or Auto ( the 1st press ON , 30 sec OFF)- Keypad tones (can be disabled )Or use as Wiegand reader in conjunction with a door controller- Transponder data is transferred- Keyboard signals can be set as 4bit , 8bit or as a virtual card number- 26bit to 37bit adjustable WiegandmodusReadable transponder types :125 kHz ( HID Prox , EM4100 , EM4102 , EM4200 or compatible) Unique / UniversalScope of delivery:- Outdoor unit / Access host sKey standalone small- Manager Cards ( learning and delete card )- Small and fixing material- Manual (english) Print- Manual ( German ) as PDFManual DownloadInstallation cable by meterTag's EM or HIDDoor OpenerController NetworkController CompactDoorbell decoder
Sebury STOUCH smallStand alone access control systemCan be used as a complete unit with integrated memory and relay outputoras tamper-resistant variant as a mere reader in conjunction with a door controller- Elegant and robust aluminum housing- Waterproof IP65- Illuminated Metal Keypad and RFID reader for contactless transponder- 2000 memory locations for key codes and transponders- Adjustable : code or transponder / code and transponder / transponder only- Additional data output for professional applications : Wiegand 26-37 bits- Tamper switch in the housing- LEDs and beeper integrated- Audible alarm if tampering- Alarm output- Integrated change-over relay- Circuit as pulse 1-99 seconds- Or as a continuous circuit ON-OFF - ON-OFF for switching functions- Bell button directly led out ( internal resistance of about 80 ohms) for electronic Gong ( max. 10mA ) or Doorbell decoder- Multi-user function , 2-10 persons must identify themselves before the door is opened.- Circuit as a single unit or as an anti -passback with two readers for one door- Transponder reading distance : up to 3 -10cm- Dimensions STOUCH s: 159x43x22mm- Power supply: 12V -24V DC- Current: 35mA- Temperature range : -40 ° C to 60 ° C- Status display : multi-function display (can be deactivated )- Keyboard Backlight : white ( can be switched off or on automatic )- Keypad tones (can be disabled )Readable transponder types :125 kHz ( HID Prox , EM4100 , EM4102 , EM4200 or compatible) Unique / UniversalScope of delivery:- Outdoor unit / Access host STOUCH standalone wide- Manager Cards ( learning and delete card )- Small and fixing material- Manual (english) Print- Manual ( German ) as PDFManual DownloadOptional AccessoriesInstallation cable by meterTag's EM or HIDDoor OpenerController NetworkController CompactDoorbell decoder
RFID and code / 2000 persons
Access control system with integrated RFID reading antenna for contactless transponderssolid steel housing, protected against vandalism and sabotageWeatherproof seal
2000 memory locations (persons)
Only transponder, only code or transponder + code
Individual transponders can be deleted even if lost
Integrated controller and active antenna
Use as stand-alone device (standard)
Use as Wiegand26 antenna possible
External door release button can be connected
Sabotage contact in the housing
Connection for door contact
For doors, barriers, underground garages, roller shutters, etc.
Potential-free relay output adjustable from 00 - 99 seconds (change-over contact)
Alarm output switching time (sabotage) adjustable from 0 - 3 minutes
Power fail-safe EEPROM memory
No PC connection
Bell button for up to 100mA
Blue backlit keypad
Integrated LEDs and beeper
Read distance: up to 6cm
Dimensions:154x43x20mm
Weight: approx.500g
Power supply: 12V DC
Power consumption: approx. 30mA
Transponder type: 13.56 Mhz ISO14443 ® 1k, 4k, 4byte UID
incl. interface: Wiegand 26 bit out
German installation and operating instructions
Optional Accessories
Tags, Cards, Fobs
Reader (W1-C is indoor mounted)
Controller (W1-C is outdoor mounted as Reader)
Power Supplies
Locker & Strikes
RFID and Code / 500 peopleMini reader with integrated RFID reader antenna for contactless tags, cards, fobs with EM4102 RFID ChipIntegrated controller and active antenna· - Use as a standalone device (standard)· - Use as Wiegand26 readers with a door controller· - Connecting of external readers is not possible500 memory locations for transponder500 memory locations for keyboard codesOnly transponder code or RFID, RFID code +Individual transponders deleted in case of lossExternal door opener button can be connectedTamper switch in the housingConnection for door contactOpen doors, gates, garages, shutters, etc.12V switching output 00-99 seconds adjustable (shunt or quiescent)Power failure safe EEPROM memoryNo PC connectionReading Distance: 3 - 10cmDimensions: 90x60x27mmPower supply: 12V-24V DCCurrent consumption: 20mABacklit keypadLoad switch output: 2000mA maxTransponder type: Universal 125kHzTemperature range: -40 ° C to 60 ° CAssembly and operating instructions
Optional Accessories
Tags, Cards, Fobs
Reader (W1-C is indoor mounted)
Controller (W1-C is outdoor mounted as Reader)
Power Supplies
Locker & Strikes
RFID and code / 1,000 peopleReader with an integrated RFID reader antenna for contactless RFID TagsSolid steel casing, matt, vandal and tamper-proof 1000 memory locations (people)Only Tags or Tags + CodeIndividual transponders can be erased if lostExternal door opener button can be connectedTamper switch in the housingConnection for door contactFor doors, gates, garages, shutters, etc.Opening relay from 01 - 99 seconds adjustableSwitching time of the alarm output (sabotage) from 00 - 99 minutes adjustableFail-safe EEPROM memory powerNo PC connectionblue backlit keypadIntergrated LED and beeperReading distance: up to 6cmDimensions: 128x82x28mmWeight: ca.500grPower supply: 12V DC (8-14V)Power consumption: about 100mALoad relay: max 2000mARFID Tags: Universal 125kHz (EM4102 or compatible)Installation and operating instructions
RFID and Code / 2,000 users Mini-reader with integrated RFID reader antenna for contactless transponder Controller and integrated active antenna · - Use as a standalone device (default)· - Use as a pure controller (also for antennas (LEGIC, ISO14443, Hitag, etc.)· - Use antenna as possible Wiegand26 2000 memory slots for transponder 2000 memory locations for key codesTransponder only or Code only or Transponder + Code Individual transponders via integrated database deletable External door opener button can be connected Tamper switch in the housing Connection for door contact alarm output Open doors, gates, garages, shutters, etc. 12V switched output 00-10 seconds adjustable (open-circuit or closed circuit) Alarm output (sabotage) 1-3 minutes adjustable Fail-safe EEPROM memory power No PC connection Read range: 3 - 10cm Dimensions: 90x60x23mm Power supply: 12V DC (10-14V) Current consumption: approx 60mA Load switch output: 2000mA max Transponder type: Universal 125kHzInstallation and operating instructions Manual
PIN-Code radio access controly systemSabotage-Safe standalone set of outdoor and indoor unitPerfect for environments where no cable can be laid or the installation effort is too heavy.hopping code method, tamperproof 100 memory locations for key codes 4-8 digits2.4 Ghz data transfer between devicesRange up to 15m - Extreme power saving mode (standard batteries last about 2 years with 100 openings per day)Changeover relay for door opener or opening of gates, doors, shutters, etc., or for switching tasks such as alarm or light, etc. Relay output Pulse 01-99 seconds adjustable (open-circuit or closed-circuit) or permanent contact on-off switch for tasks such as alarm or light, etc.Power failure Secure EEPROM MemoryIntegrated LEDs and BeeperIncl "M3" double adhesive tape for mounting on glass or ceramic.Dimensions Keypad: 135x54x19mmDimensions Controller: 65x54x19mmPower supply Keypad: 3 x AAA battery 1.5VPower Supply Controller: 12V DC +/- 20%Current consumption keypad rest: 0,01mAPower consumption Controller rest: 20mAPower consumption Keypad active: 0.4mAPower consumption Controller active: 40mATemperature range: -20 ° C to 60 ° C (0% to 86% relative humidity)Indicator light: multicolor LED and beeper (can be switched off)
RFID and code / 2000 personsAccess control system with integrated RFID reading antenna for contactless transponderssolid steel housing, protected against vandalism and sabotageWeatherproof seal2000 memory locations (persons)Only transponder, only code or transponder + codeIndividual transponders can be deleted even if lostIntegrated controller and active antennaUse as stand-alone device (standard)Use as Wiegand26 antenna possibleExternal door release button can be connectedSabotage contact in the housingConnection for door contactFor doors, barriers, underground garages, roller shutters, etc.Potential-free relay output adjustable from 00 - 99 seconds (change-over contact)Alarm output switching time (sabotage) adjustable from 0 - 3 minutesPower fail-safe EEPROM memoryNo PC connectionBell button for up to 100mABlue backlit keypadIntegrated LEDs and beeperRead distance: up to 6cmDimensions:154x43x20mmWeight: approx.500gPower supply: 12V DCPower consumption: approx. 30mATransponder type: 13.56 Mhz ISO14443 ® 1k, 4k, 4byte UIDincl. interface: Wiegand 26 bit outGerman installation and operating instructionsOptional AccessoriesTags, Cards, FobsReader (W1-C is indoor mounted)Controller (W1-C is outdoor mounted as Reader)Power SuppliesLocker & Strikes
With the MS-A12 furniture lock for lockers, wardrobes, every user can store a card, key fob with RFID chip EM4102 or a PIN code in the furniture lock for one-time use. After opening the door, a new tag or PIN code can be authorised by a customer, employee, etc. immediately. Each customer or employee can therefore select a free locker, locker or locker and immediately save their own RFID or PIN code to open the door. Alternatively, the MS-A12 furniture lock can also be configured for the "Private" operating mode. In this mode, up to 200 tags or PIN codes can be permanently stored. for cloakroom lockers, drawers, medicine cabinets, etc.Battery operation for 1.5 - 2 yearsFor standard batteries 4 x AA Mignon 1,5VQuiescent current approx. 0.015mASuitable for: EM4102, EM4100, EM4200 and compatibleYou set up a master card, which then authorizes new user card and fobs.For max. 200 user cards and fobs per lockEach user can be authorised at any number of furniture locks or in public mode, the lock is open and is locked as soon as any transponder is held in front of the reader. Only this one transponder can reopen the lock and is then automatically deleted.Scope of delivery:Indoor unit, with motorised latchCounterpartOutdoor unit with PIN code, RFID antenna and LED displayConnecting cableFixing material
RFID and code / waterproof / 2,000 people Access control system with integrated RFID reader antenna for contactless RFID tags, cards, labels and fobs Solid steel housing, vandal and tamper-proof Waterproof IP68 sealed 2,000 memory places (people)Transponder only or Code only or RFID + Code Individual transponders also erased if lost Controller and integrated active antenna · - Use as a standalone device (default)· - Use in controller mode (also for antennas (LEGIC, ISO14443, Hitag, etc.)· - Use antenna as possible Wiegand26 External door opener button can be connectedTamper switch in the housingConnection for door contactFor doors, gates, garages, shutters, etc.Potential free relay output 00-99 seconds adjustable (change)Switching time of the alarm output (sabotage) 0-3 minutes adjustableFail-safe EEPROM memory powerNo PC connectionblue backlit keypadIntegrated LEDs and beeper Reading distance: up to 6cmDimensions: 135x58x26mmWeight: ca.700gPower supply: 12V-24V DC or AC voltageCurrent consumption: approx 40mA Transponder type: Universal 125kHz (EM4102 or compatible) including interface: Wiegand 26 bit in / outincluding 2 programming cards for fast learning of transpondersInstallation and operating instructions
Manual
Optional Accessories
Tags, Cards, Fobs
Reader (W1-C is indoor mounted)
Controller (W1-C is outdoor mounted as Reader)
Power Supplies
Locker & Strikes
RFID and Code / waterproof / 2 relay outputs Reader with an integrated RFID reader antenna for contactless transponder Solid steel casing, matt, vandal and tamper-proof Waterproof IP68 sealedTotal 1200 memory locations1100 memory locations for relay 1and100 memory locations for relay 2Transponders only or Code only or Transponder + Code4-6 digit code lengthIndividual transponders deletable if lostExternal door opener button can be connectedTamper switch in the housingConnection for door contactFor doors, gates, garages, shutters, etc.Two relay outputsOpening relay from 01 - 99 seconds adjustableor as a bistable relay (maintained)Switching time of the alarm output (sabotage) 1-3 minutes adjustableFail-safe EEPROM memory powerNo PC connectionblue backlit keypadIntergrated LED and beeperKey tones switched off Reading distance: up to 6cmDimensions: 128x82x28mmWeight: ca.600gPower supply: 12-24V DC or AC voltageCurrent consumption: approx 60mALoad relay: max. 2ATransponder type: Universal 125kHz (EM4102 or compatible) English and German Installation and operating instructions Optional AccessoriesTags, Cards, FobsPower SuppliesLocker & Strikesat 240Vbei 240V►Zur Anzeige alternativer Übersetzungen klickenZiehen Sie zum Ändern der Reihenfolge mit gedrückter Umschalttaste.
Sebury sTouch wide Stand alone access control systemCan be used as a complete device with integrated memory and relay outputoras tamper-resistant reader connected with a door controller-Elegant and robust aluminium housing-Waterproof IP65-Illuminated metal keyboard and RFID reader for contactless transponder-2000 memory locations for key codes and transponder-Adjustable: Code or transponder code transponder or only transponder-additional data output for professional applications: Wiegand 26-37 bit-Tamper inside-Integrated led and beeper-Acoustic alarm for sabotage-Alarm output-integrated AC relay-Circuit as impulse 1-99 seconds- or as a permanent circuit on off on off for switching functions-Push button directly deduced (internal resistance approx. 80 ohms) only for electronic chime (max. 10mA)or doorbell> decoder-Multi user feature, 2-10 persons to identify themselves before the door is opened.-Circuit as a single unit or as anti-PassBack with two readers for a door-Reading distance tag: up to 3-10cm-Mass sTouch w: 125x83x22mm-Power supply: 12V DC-Current: 35mA-Temperature range:-40 ° C to 60 ° C-Indicator: multi function display (can be switched off)-Keypad illumination: white (can be switched off or automatic approach)-Keypad tones (can be switched off)Readable tag types:125 kHz (HID PROX, EM4100, EM4102, EM4200 or compatible) unique/universalPRODUCT COMPARISONScope of delivery:-Outdoor unit/access host sTouch standalone wide-Manager cards (learning and deleting card)-Small - and fixing material-Manual (English) print-Guide (german) as PDFManual DownloadOptional AccessoriesInstallation cable by meterTags's: EM or HIDDoor OpenerController NetworkController CompactDoorbell decoder
