sKey Reader R-W

This product is currently not available.
€74.50 *

Prices plus VAT plus shipping costs

These options are not available!

  • sKey-Leser-R-w
Sebury sKey wide keyboard Tamper -proof outdoor unit without saving - Elegant and robust... more
Product information "sKey Reader R-W"

Sebury sKey wide keyboard

Tamper -proof outdoor unit without saving
- Elegant and robust aluminum housing
- Waterproof IP65
- Illuminated Metal Keypad and RFID reader for contactless transponder
- Data connection to a controller
- Delivery without door controller
- Data output: Wiegand 26-37 bits
- Tamper switch in the housing
- Intergrated LED and beeper
- Audible alarm if tampering
- Bell button directly led out ( internal resistance of about 80 ohms) for electronic Gong ( max. 10mA )

or Doorbell decoder
- Transponder reading distance : up to 3 -10cm
- Dimensions sKey R w: 125x83x22mm
- Power supply: 12V DC
- Current: 35mA
- Temperature range : -40 ° C to 60 ° C
- Status display : multi-function display (can be deactivated )
- Keyboard Backlight : white, On or Off , or Auto ( the 1st press ON , 30 sec OFF)
- Keypad tones (can be disabled )

Readable transponder types :
125 kHz
- HID Prox
- EM4100 , EM4102 , EM4200 or compatible) Unique / Universal

Scope of delivery:
- Outdoor unit / Access host sKey reader -R -w
- Small and fixing material
- Manual (english) Print
- Manual ( German ) as PDF

PDF- Manual


Optional Accessories

Installation cable by meter

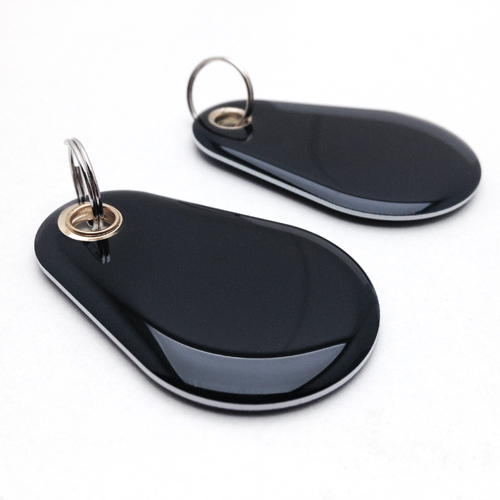

Tags's: EM or HID

Door Opener

Controller Network

Controller Compact


Doorbell decoder



RFID Lesbarer Chiptyp: 125 kHz, EM4102
Protokoll, Bauform, Relais, : Klingeltaste, PIN Code, Wasserdicht, Wiegand 26, Wiegand 34
