Sboard-III Wifi

System open door controller
Access control system for Wiegand-capable access readers
or
as an evaluation unit as an IAS arming/disarming switch

•  500 storage spaces for transponders or PIN codes

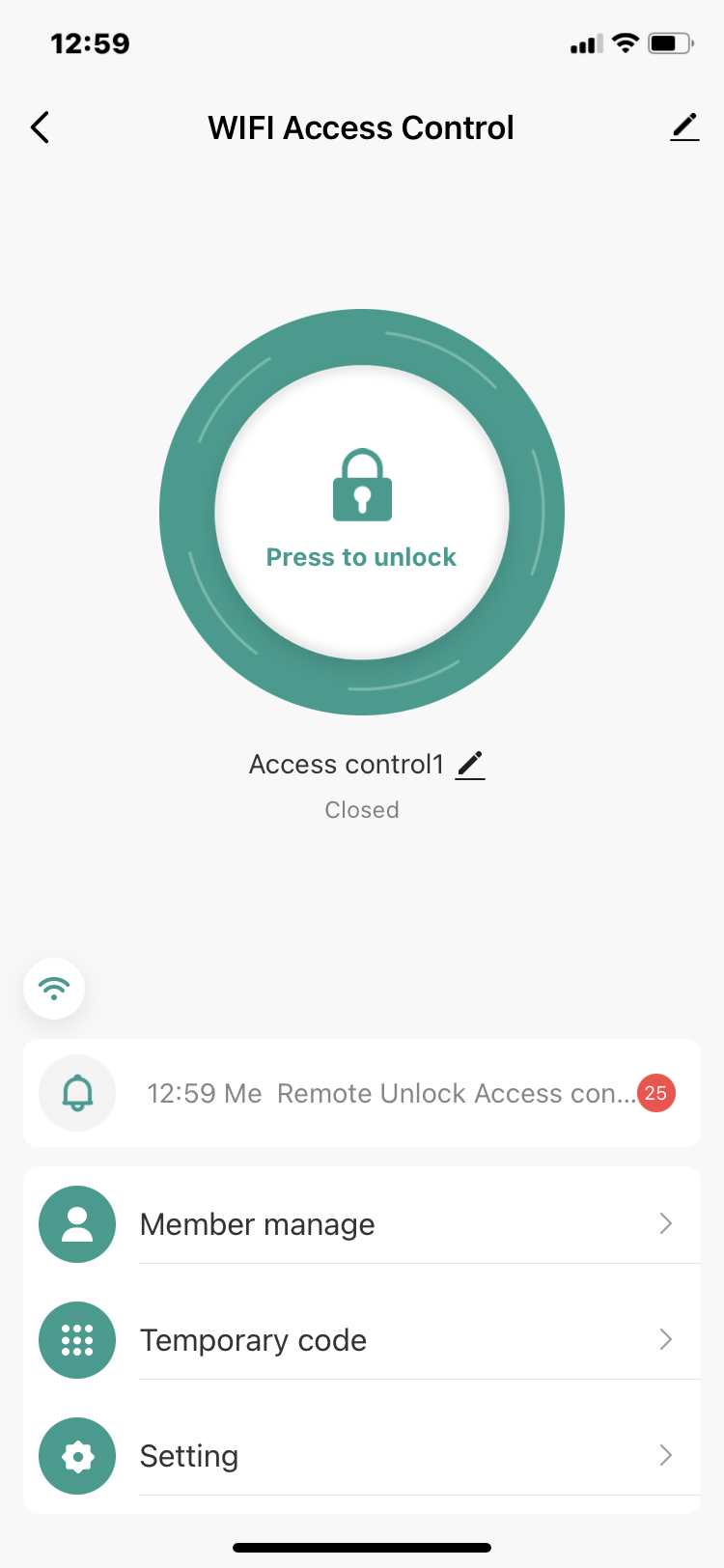

•  Management via WLAN and smartphone app (IOS and Android)
•  External door opener button can be connected
• Door contact (door open or door closed) can be connected
•  LED output for display on the reader
•  Output adjustable via jumper
• Voltage is switched through directly (factory setting) or potential-free relay contact changeover
• Pulse 1-99 seconds or dynamic ON-OFF-ON-OFF ...
• Power failure-safe EEPROM memory
•  Wiegand input 26-37bit e.g. for RFID readers EM4102, HITAG, ISO14443, LEGIC, UHF, etc. with or without PIN code keyboard, magnetic card reader, fingerprint readers, biometric face recognition

    Dimensions: 91x48x20mm
    Weight: 63g
    Operating temperature: -20°C to 60°C
    Power supply: 12V DC
    Current consumption: approx. <20mA
    Load outputs: max 2A
    English user manual
    German operating instructions as PDF download


Power display: LED red
LED and signal tones can be switched off
