Sboard ISO14443

Open door access controller
Access control system for Wiegandable access readers
or
control unit as EMA arming/disarming device

• 1000 memory locations for transponders or PIN codes
• Access with RFID only, PIN only or RFID + PIN
• Single RFID tags and PINs can be deleteted separatly
• External door release button can be connected
• LED output for display on the reader
• Output adjustable via jumper
• Voltage is switched directly through (factory setting) or floating relay contact Change-over contact
• Pulse 1-99 seconds or Dynamic ON-OFF-OFF-OFF....
• Power-fail-safe EEPROM memory
• Block storage with sorted transponders Enter the first UID number and quantity, ready (e. g. 1000 pcs. in approx. 2 minutes)
• No PC connection needed
• Copy the entire memory contents into one or more sBoards as a "backup copy" or as a fast creation for several doors
• Wiegand input 26-37bit e. g. for RFID readers EM4102, HITAG, ISO14443, LEGIC, UHF, etc. with or without PIN-code keypad, magnetic card reader, fingerprint reader, biometric face recognition.
• When using ISO14443 wall scanners, please always order the ISO14443 programming card set as well, or alternatively use the supplied remote control
• Dimensions: 65x54x19mm
• Weight: 40g
• Operating temperature: -40°C to 60°C
• Power supply: 12V DC voltage
• Output load: max. 2A
• incl. infrared programming device for all changes, settings (password protection 6-digit)
• incl. programming cards Set for your selected ISO14443 wall reader
• English instruction manual
• German manual as PDF file
• Power indicator: LED red
• LED and signal tones can be switched off

Wiring samples

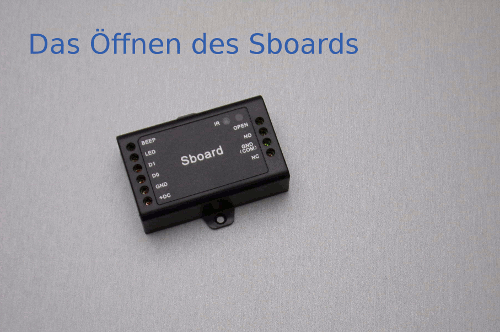

How do I open the case?
